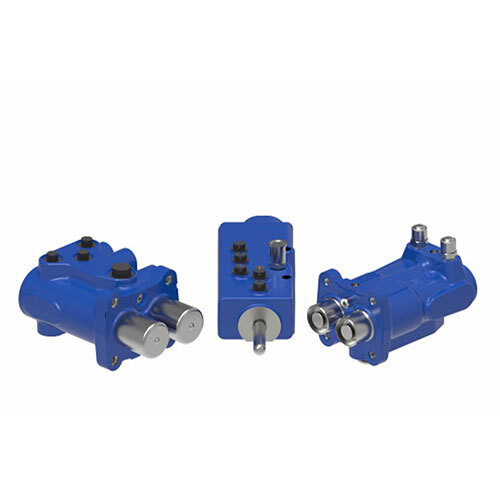

Brake valves

Brake valves Specification

Product Name
Brake Valve

Type
Hydraulic / Pneumatic (As per applications)

Material
High-grade Cast Iron / Steel

Power
Manual / Pneumatic / Hydraulic

Pressure
Up to 250 bar (Depending on model)

Structure
Piston or Diaphragm Operated

Size
Standard sizes: 12, 34, 1, 1 14, 1 12, 2 (Others on request)

Weight
From 1.5 kg to 7 kg (Depending on size and construction)

Temperature
-20C to 100C

Sealing Type
O-ring / Rubber seat

Control Method
Foot operated / Hand lever / Remote actuation

End Connection
Threaded / Flanged

Application
Industrial machinery, Commercial vehicles, Railways

Port Connection
BSP / NPT available

Operating Medium
Compressed air / Hydraulic oil

Mounting Position
Vertical / Horizontal (according to installation requirement)

Life Cycle
Tested for minimum 1 million cycles

Surface Finish
Phosphated or Painted as per requirement

Leakage Rate
Less than 0.1 cc/min at rated pressure

Corrosion Resistance
Provided with surface coating

About Brake valves

Experience premier braking control with our special Brake Valves, designed for industrial machinery, commercial vehicles, and railways. Featuring potent performance, these top-rated valves offer instant savings through long-lasting usage and minimal maintenance needs. Choose from vertical or horizontal mounting to suit unique installation requirements. Each valve operates efficiently with compressed air or hydraulic oil and includes corrosion-resistant coatings for breathtaking durability. Available in BSP/NPT port connections, these high-grade cast iron or steel valves guarantee a leakage rate below 0.1 cc/min, tested for over 1 million cycles. Secure threaded/flanged ends and O-ring/rubber seat sealing ensure safe, reliable operations.

Versatile Application and Operation Methods

Brake valves are engineered for adaptability, operating through foot, hand lever, or remote actuation. With compatibility for compressed air and hydraulic oil as application media, they are ideal for sophisticated industrial machinery, commercial vehicles, and railway systems. Used for precise flow control and enhanced braking performance, these valves accommodate both pneumatic and hydraulic systems, ensuring flexibility and reliability across demanding operational scenarios.

Global Export and Secure Shipment Solutions

We offer Brake Valves to international markets, focusing on Asia, Africa, and Europe as our main export destinations. All shipped goods are packaged with care-using sturdy wooden boxes or customized crates to ensure secure shipping every time. Our products typically depart from the major Indian ports under FOB terms, ensuring prompt and protected delivery to our buyers worldwide. Experience hassle-free transactions and unmatched service with every order.

FAQ's of Brake valves:

Q: How do I determine the correct mounting position for the brake valve?

A: The mounting position of the brake valve can be either vertical or horizontal, depending on your installation requirement. Assess the system layout and available space to decide the optimal orientation for seamless integration and maximum performance.

Q: What application media are supported by these brake valves?

A: These brake valves are compatible with both compressed air and hydraulic oil, making them suitable for a variety of systems such as industrial, commercial, and railway applications.

Q: When should I replace a brake valve to ensure optimal safety?

A: Brake valves are tested for a minimum of 1 million cycles. It is recommended to monitor performance regularly and consider replacement if visible wear, leakage, or performance decline is observed, especially after extensive usage cycles.

Q: Where are your brake valves mainly exported?

A: We mainly export brake valves to Asia, Africa, and Europe, providing top-rated solutions for global industrial, automotive, and rail sectors.

Q: What is the process for ordering and shipping brake valves internationally?

A: Once you place your order, we ensure secure packaging-typically in wooden boxes-and ship the goods from recognized Indian ports under FOB conditions, keeping you informed through every step of the delivery process.

Q: What are the benefits of choosing your brake valves?

A: Our brake valves offer potent operation, unparalleled durability with corrosion-resistant coatings, a low leakage rate, and are supported by instant savings due to their long service life and minimal maintenance requirements.
