Flow control valves

Get a Price/Quote

Product Details:

Color Silver
Usage Industrial
Product Name Flow control valves
Type Hydraulic Valve
Material Alloy
Power Hydraulic Watt (w)
Pressure Medium Pressure PSI
Click to view more
Share Your Product:

Request To Call Back Send Inquiry

Flow control valves Price And Quantity

Minimum Order Quantity 10 Unit

Flow control valves Product Specifications

Power Hydraulic Watt (w)
Size Standard
Color Silver
Usage Industrial
Type Hydraulic Valve
Material Alloy
Product Name Flow control valves
Pressure Medium Pressure PSI

Flow control valves Trade Information

Supply Ability 5000 Unit Per Month
Delivery Time 10 Days

Product Description

Features and benefits

Flow rating up to 380 l/min [100 US gal/min]
Pressure rating up to 450 bar [6500 psi]

Needle valves

Product Code	Cavity	Flow	Pressure
NV1-8	SDC08-2	10 l/min [3 US gpm]	350 bar [5000 psi]
CP618-6	SDC08-2	10 l/min [3 US gpm]	310 bar [4500 psi]
NV1-10	SDC10-2	45 l/min [12 US gpm]	210 bar [3000 psi]
FCV7-10-NV	SDC10-2	45 l/min [12 US gpm]	210 bar [3000 psi]
FCV7-10-NVF	SDC10-2	45 l/min [12 US gpm]	210 bar [3000 psi]
FCV11-12	C-12-2	114 l/min [30 US gpm]	350 bar [5000 psi]
FCV6-16	SDC16-2	208 l/min [55 US gpm]	210 bar [3000 psi]
CP613-1	SDC20-2	380 l/min [100 US gpm]	210 bar [3000 psi]
FCV7-10	SDC10-2	45 l/min [12 US gpm]	210 bar [3000 psi]
CP610-7	SDC10-2	55 l/min [14 US gpm]	350 bar [5000 psi]

Restrictive type pressure compensated flow control valves

Product Code	Cavity	Flow	Pressure
CP308-1	SDC08-2	15 l/min [4 US gpm]	210 bar [3000 psi]
FR5-8	SDC08-2	10 l/min [2.5 US gpm]	350 bar [5000 psi]
FR5-10	SDC10-2	23 l/min [6 US gpm]	280 bar [4000 psi]
CP301-1	CP12-2	57 l/min [15 US gpm]	210 bar [3000 psi]
FR1-16	SDC16-2	114 l/min [30 US gpm]	210 bar [3000 psi]
FR1-20	SDC20-2	227 l/min [60 US gpm]	210 bar [3000 psi]
SC 10	N/A	16 l/min [4.2 US gpm]	210 bar [3000 psi]
SC 13	N/A	47 l/min [12.4 US gpm]	210 bar [3000 psi]
CP300-6	SDC10-3	23 l/min [6 US gpm]	210 bar [3000 psi]
FCH10-BD	SDC10-3	23 l/min [6 US gpm]	350 bar [5000 psi]
CP308-2	SDC08-2	15 l/min [4 US gpm]	210 bar [3000 psi]
FR2-10	SDC10-2	38 l/min [10 US gpm]	210 bar [3000 psi]
FR2-16	SDC16-2	114 l/min [30 US gpm]	210 bar [3000 psi]
HFCV10-RT	SDC10-2	11.4 l/min [3 US gpm]	350 bar [5000 psi]
HFCV10-HRT	SDC10-2	45 l/min [12 US gpm]	350 bar [5000 psi]
2CFRC60	A7447	60 l/min [16 US gpm]	350 bar [5000 psi]

Priority type pressure compensated flow control valves

Product Code	Cavity	Flow	Pressure
FAR1-12	C-12-2	95 l/min [25 US gpm]	310 bar [4500 psi]
FAR1-16	SDC16-2	114 l/min [30 US gpm]	310 bar [4500 psi]
PFR5-8	SDC08-3	10 l/min [2.5 US gpm]	280 bar [4000 psi]
VRF 06	NCS06/3	30 l/min [8 US gpm]	315 bar [4600 psi]
PFR15-10	SDC10-3	38 l/min [10 US gpm]	350 bar [5000 psi]
CP311-1	CP12-3	45 l/min [12 US gpm]	210 bar [3000 psi]
PFR11-12	C-12-3	76 l/min [20 US gpm]	350 bar [5000 psi]
CP312-1	SDC16-3	65 l/min [17 US gpm]	210 bar [3000 psi]
PFR11-16	SDC16-3	114 l/min [30 US gpm]	350 bar [5000 psi]
PFR2-10	SDC10-3	38 l/min [10 US gpm]	210 bar [3000 psi]
VRC 06	NCS06/3	30 l/min [8 US gpm]	315 bar [4600 psi]
PFR12-10	SDC10-3	38 l/min [10 US gpm]	350 bar [5000 psi]
PFR12-12	C-12-3	76 l/min [20 US gpm]	350 bar [5000 psi]
2CFP60	CVA27-04	60 l/min [16 US gpm]	350 bar [5000 psi]
VRC 12	NCS12/3	73 l/min [19 US gpm]	315 bar [4600 psi]

Flow divider / Combiner valves

Product Code	Cavity	Flow	Pressure
PFR2-16	SDC16-3	114 l/min [30 US gpm]	210 bar [3000 psi]
PFR12-16	SDC16-3	114 l/min [30 US gpm]	350 bar [5000 psi]
CP340-1 / 1S	SDC10-4	45 l/min [12 US gpm]	210 bar [3000 psi]
2CFD50 / A2X	SDC10-4	40 l/min [11 US gpm]	350 bar [5000 psi]
CP341-1	CP12-4	76 l/min [20 US gpm]	210 bar [3000 psi]
CP342-1 / 1S	SDC16-4	150 l/min [40 US gpm]	210 bar [3000 psi]
CP342-3	SDC16-4	150 l/min [40 US gpm]	450 bar [6500 psi]
CP343-1	SDC20-4	340 l/min [90 US gpm]	210 bar [3000 psi]

Velocity fuses

Product Code	Cavity	Flow	Pressure
VF11-10	SDC10-2	23 l/min [6 US gpm]	350 bar [5000 psi]
CP330-3	N/A	110 l/min [29 US gpm]	210 bar [3000 psi]

Tell us about your requirement

Price:

Quantity *

Quantity

Select Unit

50
100
200
250
500
1000+

Additional detail

Mobile number

Other Products in 'Hydraulic Valves' category

Load sensing directional control valves Minimum Order Quantity : 10 Power : Hydraulic Watt (w) Size : Standard Usage : Industrial Type : Hydraulic Valve Material : Alloy Product Name : Load sensing directional control valves Color : Black Structure : Control

Send Inquiry

Motion control valves Minimum Order Quantity : 10 Power : Hydraulic Watt (w) Size : Standard Usage : Industrial Type : Hydraulic Valve Material : Alloy Product Name : Motion control valves Color : Silver Structure : Control

Send Inquiry

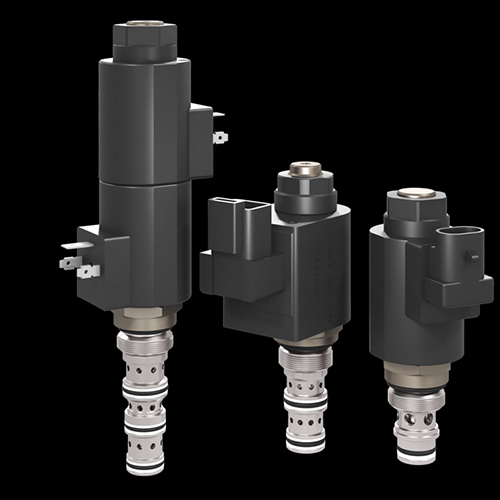

Solenoid valves Minimum Order Quantity : 10 Power : Hydraulic Watt (w) Size : Standard Usage : Industrial Type : Hydraulic Valve Material : Alloy Product Name : Solenoid valves Color : Black

Send Inquiry

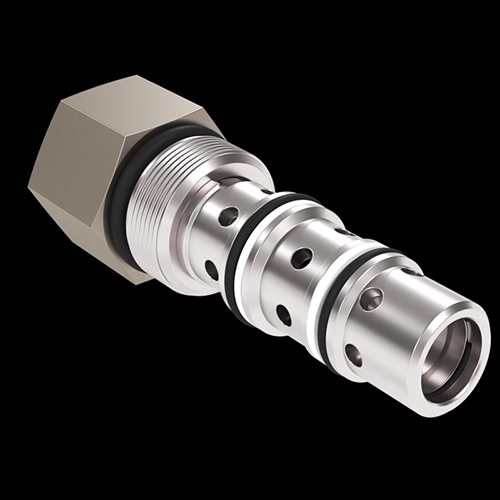

Shuttle valves Minimum Order Quantity : 10 Power : Hydraulic Watt (w) Size : Standard Usage : Industrial Type : Hydraulic Valve Material : Alloy Product Name : Shuttle valves Color : Silver
