PVE S7 electrohydraulic actuators

Get a Price/Quote

Product Details:

Application Industrial Valves, Mobile Machinery Automation, Off-Highway Equipment
IP Rating IP67
Valve Type Proportional Directional Control Valve
Pressure Ratings Max 350 bar (5075 psi)
Flow Rate Up to 30 l/min (7.9 gpm)
Voltage 12V DC or 24V DC variants
Capacity Suitable for up to 3000 Nm torque valves
Click to view more
Share Your Product:

Request To Call Back Send Inquiry

PVE S7 electrohydraulic actuators Price And Quantity

Minimum Order Quantity 1 Piece

Vibration Resistance Up to 20g
Manual Override Available
Cycle Life >5 million cycles
Protection Class IP6K9K (option available)
Connector Type DIN or Deutsch
Control Type Digital (CANbus/J1939, Analog options available)
Response Time <100 ms
Weight 2.8 kg (approx.)
Feedback Integrated Position Feedback (Hall sensor)
Enclosure Material UV Stabilized Polyamide End Cap

PVE S7 electrohydraulic actuators Product Specifications

Application Industrial Valves, Mobile Machinery Automation, Off-Highway Equipment
Model PVE S7
Material Anodized Aluminium Housing, Stainless Steel Rod
Power 12 W
Temperature -30C to +60C (-22F to +140F)
Flow Rate Up to 30 l/min (7.9 gpm)
IP Rating IP67
Voltage 12V DC or 24V DC variants
Capacity Suitable for up to 3000 Nm torque valves
Valve Type Proportional Directional Control Valve
Pressure Ratings Max 350 bar (5075 psi)
Connection Plug Connector, M12
Media Hydraulic Oil
Pipe Connection Type Threaded, Metric/BSP
Diameter Actuator Piston: 20 mm
Structure Electrohydraulic Linear Actuator
Noise Level Less than 65 dB(A)
Port Size G 1/4
Standard ISO 9001:2015, CE Certified
Mounting Type Flange or Direct Valve Mount
Sealing IP67 Sealed Enclosure

Vibration Resistance Up to 20g
Manual Override Available
Cycle Life >5 million cycles
Protection Class IP6K9K (option available)
Connector Type DIN or Deutsch
Control Type Digital (CANbus/J1939, Analog options available)
Response Time <100 ms
Weight 2.8 kg (approx.)
Feedback Integrated Position Feedback (Hall sensor)
Enclosure Material UV Stabilized Polyamide End Cap

Tell us about your requirement

Price:

Quantity

Select Unit

50
100
200
250
500
1000+

Additional detail

Mobile number

Other Products in 'Directional Control Valves' category

PVG 128-256 proportional valves Minimum Order Quantity : 1 Material : Other, High strength cast iron, steel Sealing : NBR / FKM Pipe Connection Type : Other, Threaded / Flanged Port Size : G1 1/4, G1 1/2 Capacity : Multiple section capability Voltage : 12V DC / 24V DC Flow Rate : Up to 240 l/min (PVG 128), up to 300 l/min (PVG 256) Temperature : Others, 30C to +90C Mounting Type : Subplate / manifold mounting Standard : ISO 4401, DIN 24340 Diameter : 32 mm (PVG 128), 40 mm (PVG 256) Media : Others, Hydraulic Oil Noise Level : < 70 dB(A) Structure : Other, Proportional Directional Valve Connection : Other, Flanged Valve Type : Proportional multisection valve IP Rating : IP65 (with suitable connectors) Application : Construction machinery, material handling, industrial equipment, mobile machinery Model : PVG 128, PVG 256 Power : Other, 24V DC (nominal) Pressure Ratings : Up to 420 bar

Send Inquiry

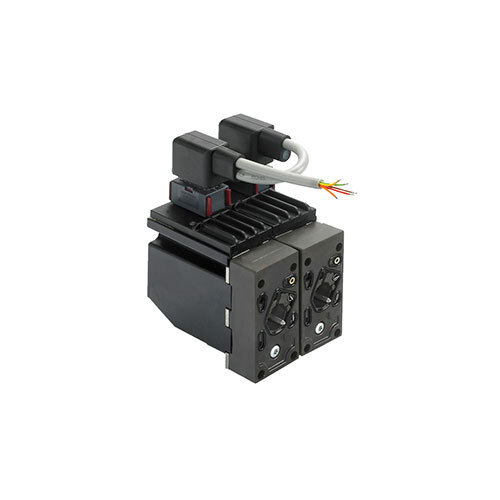

PVED electrohydraulic actuators Minimum Order Quantity : 1 Material : Other, Anodized Aluminum Body with Stainless Steel Components Sealing : IP65/IP67 (Depending on Model) Pipe Connection Type : Other, Threaded Ports Port Size : G1/4 or 1/4 NPT Capacity : Actuation Force up to 1200 N Voltage : 12/24 VDC Flow Rate : Up to 40 L/min Temperature : Others, 20C to +70C Mounting Type : BoltOn Flange or Integrated Mount Standard : ISO 9001:2015 Diameter : Max. Shaft Diameter: 16 mm Media : Others, Hydraulic Oil (Mineral Oil based DIN 51524) Noise Level : <70 dB(A) Structure : Other, Compact Integrated ActuatorController Unit Connection : Other, AMP or M12 Electrical Connectors Valve Type : Proportional Valve, Directional Control IP Rating : IP65/IP67 Application : Mobile Hydraulics, Agricultural Equipment, Industrial Automation, Marine Applications Model : PVED Series Power : Other, 12W (Typical) Pressure Ratings : Up to 350 bar

Send Inquiry

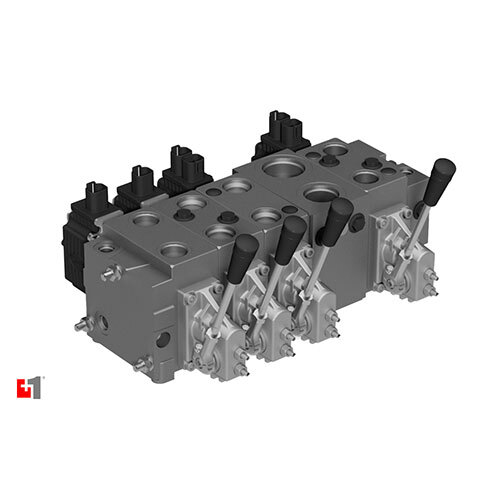

PVG 48 proportional valves Minimum Order Quantity : 1 Material : Other, Highstrength aluminum alloy, zinccoated steel Sealing : NBR (BunaN), FKM (Viton) optional Pipe Connection Type : Other, Threaded or flanged Port Size : 3/8 to 11/2 BSP/NPT Capacity : Modular, scalable flow capacity Voltage : 12V DC, 24V DC, 220V AC Flow Rate : Up to 240 L/min (depending on configuration) Temperature : Others, 20C to +60C Mounting Type : Stackable, subplate mounting Standard : DIN EN 175301803, ISO 55991 Diameter : Nominal diameter up to 48 mm Media : Others, Hydraulic oil (Mineralbased or Synthetic) Noise Level : <70 dB(A) at rated flow Structure : Other, Proportional directional control valve Connection : Other, Pipe thread or flanged Valve Type : Proportional solenoid valve IP Rating : IP65 Application : Industrial machinery, mobile hydraulics, automation Model : PVG 48 Power : Other, Electrohydraulic Pressure Ratings : Upto 350 bar

Send Inquiry

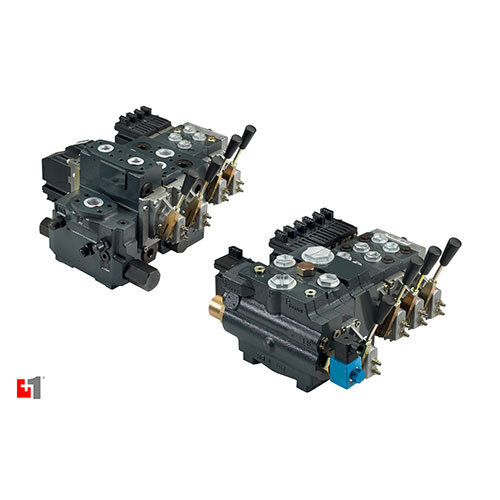

PVG combination and hybrid valves Material : Other, Highgrade cast iron housing, hardened steel components Sealing : NBR, FKM, or HNBR seals depending on media and temperature Pipe Connection Type : Other, BSP threaded, SAE, subplate mounting Port Size : G1/2, G3/4, G1 Capacity : Modular sections can be combined as per system requirement Voltage : 12V DC / 24V DC / 110V AC / 230V AC (for solenoid type) Flow Rate : up to 150 l/min Temperature : Others, 20C to +80C Mounting Type : Subplate, manifold, or direct piping Standard : ISO 4401 / DIN 24340 / CETOP RP 121H Diameter : Up to NG25 / CETOP 5 Media : Others, Hydraulic oil (mineralbased and synthetic compatible) Noise Level : <70 dB(A) under normal operation Structure : Other, Modular combination and hybrid valve design Connection : Other, Subplate or threaded connection Valve Type : Directional control, pressure relief, flow control (combination/hybrid) IP Rating : IP65 (with correctly installed plug) Application : Mobile and industrial hydraulic machinery, construction equipment, agricultural vehicles Model : PVG Combination & Hybrid Series Power : Other, Hydraulic, solenoid, and manual options Pressure Ratings : up to 350 bar (5075 psi)
