PVG 48 proportional valves

Get a Price/Quote

Product Details:

Voltage 12V DC, 24V DC, 220V AC
Capacity Modular, scalable flow capacity
Pressure Ratings Upto 350 bar
Noise Level <70 dB(A) at rated flow
Flow Rate Up to 240 L/min (depending on configuration)
Connection Pipe thread or flanged
IP Rating IP65
Click to view more
Share Your Product:

Request To Call Back Send Inquiry

PVG 48 proportional valves Price And Quantity

Minimum Order Quantity 1 Piece

Suitable Fluids Hydraulic oil, phosphate-ester based fluids (consult manufacturer)
Control Signal Analog voltage 0-10V or 4-20mA current
Spool Type Open center or closed center options
Service Life >10 million cycles
Actuation Method Proportional solenoid
Feedback Integrated LVDT position feedback available
Interface Manual override possible
Color Standard industrial gray
Protection Features Overload and short-circuit protection in electric coil
Response Time <70 ms
Weight Approx. 6-12 kg (as per configuration)

PVG 48 proportional valves Product Specifications

Port Size 3/8 to 1-1/2 BSP/NPT
Flow Rate Up to 240 L/min (depending on configuration)
Valve Type Proportional solenoid valve
Connection Pipe thread or flanged
IP Rating IP65
Pipe Connection Type Threaded or flanged
Voltage 12V DC, 24V DC, 220V AC
Structure Proportional directional control valve
Power Electro-hydraulic
Diameter Nominal diameter up to 48 mm
Material High-strength aluminum alloy, zinc-coated steel
Standard DIN EN 175301-803, ISO 5599-1
Capacity Modular, scalable flow capacity
Temperature -20C to +60C
Pressure Ratings Upto 350 bar
Model PVG 48
Media Hydraulic oil (Mineral-based or Synthetic)
Mounting Type Stackable, subplate mounting
Sealing NBR (Buna-N), FKM (Viton) optional
Noise Level <70 dB(A) at rated flow
Application Industrial machinery, mobile hydraulics, automation

Suitable Fluids Hydraulic oil, phosphate-ester based fluids (consult manufacturer)
Control Signal Analog voltage 0-10V or 4-20mA current
Spool Type Open center or closed center options
Service Life >10 million cycles
Actuation Method Proportional solenoid
Feedback Integrated LVDT position feedback available
Interface Manual override possible
Color Standard industrial gray
Protection Features Overload and short-circuit protection in electric coil
Response Time <70 ms
Weight Approx. 6-12 kg (as per configuration)

Tell us about your requirement

Price:

Quantity

Select Unit

50
100
200
250
500
1000+

Additional detail

Mobile number

Other Products in 'Directional Control Valves' category

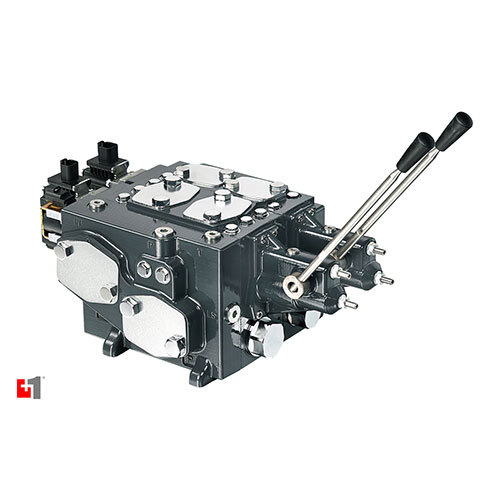

PVG 128-256 proportional valves Minimum Order Quantity : 1 Material : Other, High strength cast iron, steel Port Size : G1 1/4, G1 1/2 Connection : Other, Flanged Sealing : NBR / FKM Pipe Connection Type : Other, Threaded / Flanged Noise Level : < 70 dB(A) Pressure Ratings : Up to 420 bar Media : Others, Hydraulic Oil Capacity : Multiple section capability Voltage : 12V DC / 24V DC Structure : Other, Proportional Directional Valve IP Rating : IP65 (with suitable connectors) Flow Rate : Up to 240 l/min (PVG 128), up to 300 l/min (PVG 256) Mounting Type : Subplate / manifold mounting Application : Construction machinery, material handling, industrial equipment, mobile machinery Model : PVG 128, PVG 256 Diameter : 32 mm (PVG 128), 40 mm (PVG 256) Standard : ISO 4401, DIN 24340 Power : Other, 24V DC (nominal) Temperature : Others, 30C to +90C Valve Type : Proportional multisection valve

Send Inquiry

PVG 32 proportional valves Minimum Order Quantity : 1 Material : Other, Highgrade cast iron, steel components Port Size : G 3/4 Connection : Other, Flanged/Threaded port connections Sealing : NBR (standard), FKM (option) Pipe Connection Type : Other, Threaded Noise Level : <70 dB(A) Pressure Ratings : Up to 350 bar (5,075 psi) Media : Others, Hydraulic oil (mineral oilbased) Capacity : High flow capacity for medium duties Voltage : 12V DC / 24V DC / 110V AC / 230V AC (coil voltages) Structure : Other, Modular sectional, stackable design IP Rating : IP65 (with electrical connector) Flow Rate : Up to 150 L/min Mounting Type : Subplate mounting Application : Industrial and mobile hydraulic systems Model : PVG 32 Diameter : 32 mm Standard : ISO 4401 / DIN 24340 Power : Other, Up to 40 kW Temperature : Others, 20C to +70C (fluid); 30C to +60C (ambient) Valve Type : Proportional directional control valve

Send Inquiry

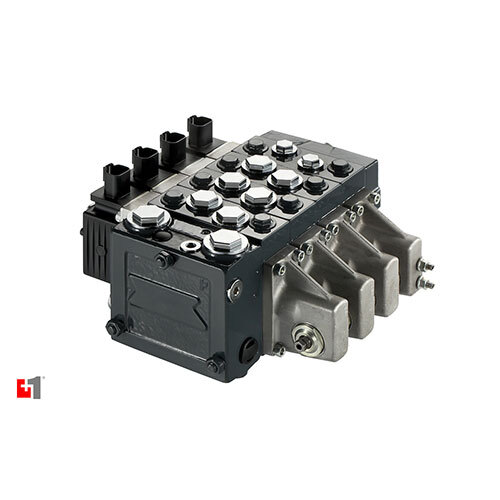

PVG 16 proportional valves Minimum Order Quantity : 1 Material : Other, Highstrength cast iron body, hardened steel components Port Size : 1/2 BSPP or SAE Connection : Other, Flanged/Threaded Sealing : NBR (BunaN) or FKM (Viton) Pipe Connection Type : Other, Threaded or Flanged Noise Level : Less than 70 dB(A) Pressure Ratings : Up to 420 bar (max) Media : Others, Hydraulic Oil Capacity : Sectional multiple modules per assembly Voltage : 12V DC / 24V DC Structure : Other, Sectional type proportional directional control valve IP Rating : IP65 Flow Rate : Up to 180 L/min Mounting Type : Subplate or direct mount Application : Mobile machinery, Construction equipment, Agricultural machinery Model : PVG 16 Diameter : 16 mm spool diameter Standard : ISO 4401 / CETOP RP 121H Power : Other, Electrohydraulic, 12V or 24V coil options Temperature : Others, 20C to +80C Valve Type : Proportional directional control valve
