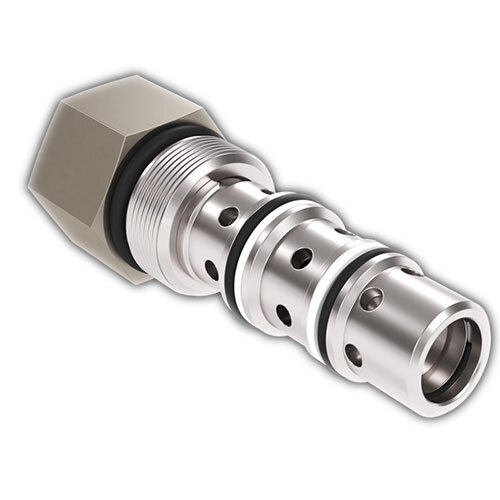

Shuttle valves

Shuttle valves Specification

Usage
Industrial

Color
Silver

Shuttle valves Trade Information

Minimum Order Quantity
10 Units

Supply Ability
5000 Units Per Month

Delivery Time
10 Days

About Shuttle valves

Features and benefits

Flow rating up to 90 l/min [24 US gal/min]
Pressure rating up to 450 bar [6500 psi]

Ball type shuttle valve

Model code	Cavity	Rated pressure	Rated flow	3D model
CP124-1	CP04-3	350 bar (5075 psi)	3.7 lpm (1 gpm)	STP file
CP128-1	SDC08-3	315 bar (4570 psi)	22 lpm (5.8 gpm)	STP file
SV 04	NCS04/3	315 bar (4570 psi)	15 lpm (4 gpm)	STP file
CP120-4	SDC10-3	330 bar (4800 psi)	25 lpm (7 gpm)	STP file
SV 06	NCS06/3	350 bar (5075 psi)	48 lpm (12.7 gpm)	STP file

Versatile Hydraulic Performance

Shuttle valves are vital hydraulic components favored across industries due to their adaptability and reliable operation. With their ability to automatically select the higher pressure source, these alloy valves streamline system instrumentation and can be employed in diverse hydraulic circuits without complex manual intervention.

Robust Alloy Construction

Engineered from high-grade alloy, these shuttle valves boast exceptional strength and corrosion resistance. Their durable silver finish not only elevates their visual appeal but also ensures longevity in harsh industrial environments, reducing the need for frequent replacements and maintenance.

FAQ's of Shuttle valves:

Q: How do shuttle valves operate in hydraulic systems?

A: Shuttle valves function by automatically routing hydraulic fluid from the higher pressure source to the actuating component. This action ensures seamless operation without manual switching, making them highly efficient for automation and safety in industrial applications.

Q: What are the primary benefits of using alloy shuttle valves in industry?

A: Alloy shuttle valves offer superior durability, corrosion resistance, and reliable fluid control. These advantages contribute to minimized downtime, extended service life, and improved efficiency in hydraulic systems.

Q: When should shuttle valves be installed in an industrial hydraulic setup?

A: Shuttle valves are ideal when systems require selective flow from multiple pressure sources, such as in load sensing or emergency backup circuits. Installation is recommended during the initial setup of complex hydraulic networks or retrofits that demand increased automation.

Q: Where can these shuttle valves be sourced in India?

A: These valves are supplied and traded by specialized industrial suppliers across India, offering prompt delivery and technical assistance for standardized hydraulic components.

Q: What is the typical process for installing a shuttle valve in a hydraulic system?

A: Installation involves integrating the shuttle valve into the existing hydraulic line between potential pressure sources and the actuators. Proper alignment and sealing are essential to ensure optimal performance and leak-free operation.

Q: How is the standard size of shuttle valves advantageous for industrial usage?

A: Standard sizing ensures compatibility with various hydraulic components, streamlining installation and reducing the need for additional fittings or modifications in industrial machinery.
